Services

Overview

As far as we have discussed the importance of windows, panels, and fabrication for any building or company. Let’s take a look at some of our great services.

There are two types of facade:

  • Glazing
  • Cladding
Glazing Cladding
Curtain Walling Aluminum Composite Panel
Point Support Glazing Metal Cladding
Spider Glazing Zinc Panel Cladding
Bolted Glazing Stone Cladding
Glazing on Tension Truss Clay tile Cladding
Glazing on Cable Truss Wooden Panel Cladding
Atrium Polycarbonate Panel
Skylight , Canopies , Dome GFRC Cladding
Shop Front / Display FRP Cladding
Doors & Windows

Know your fecade system

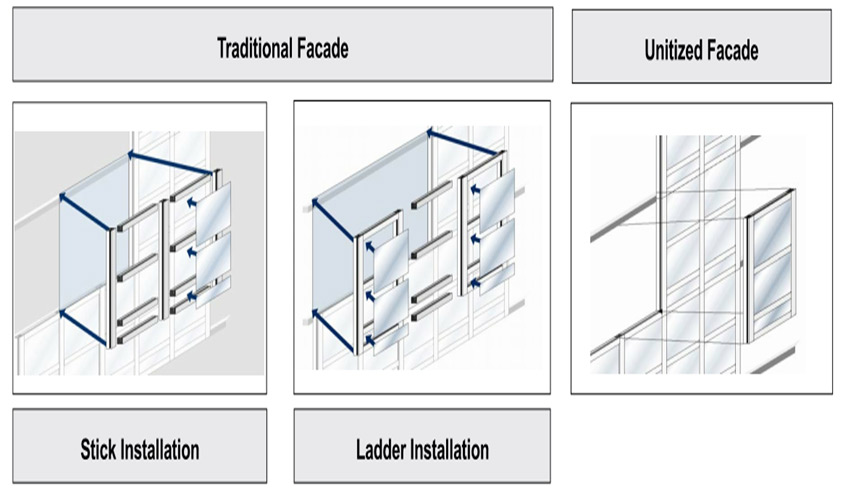

1. Clarification

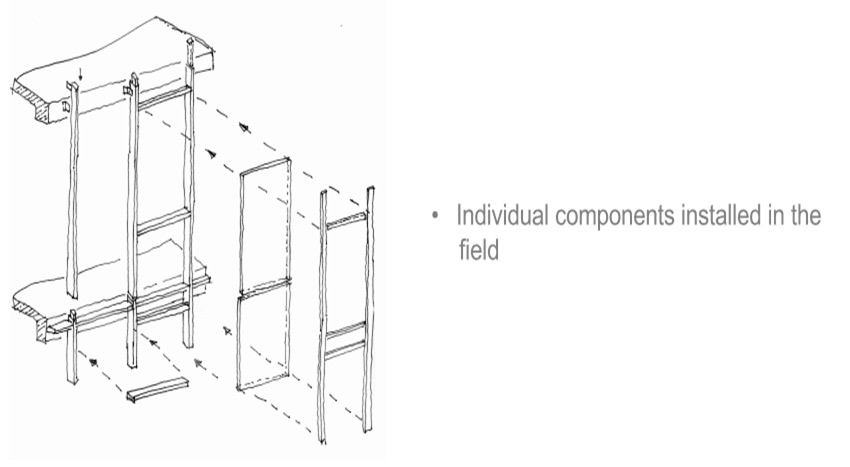

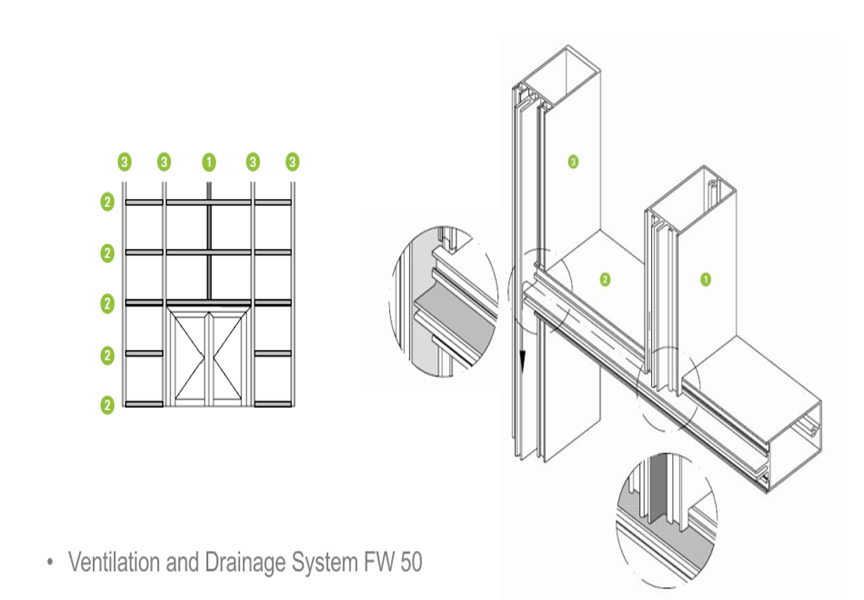

2. Stick System Fecades

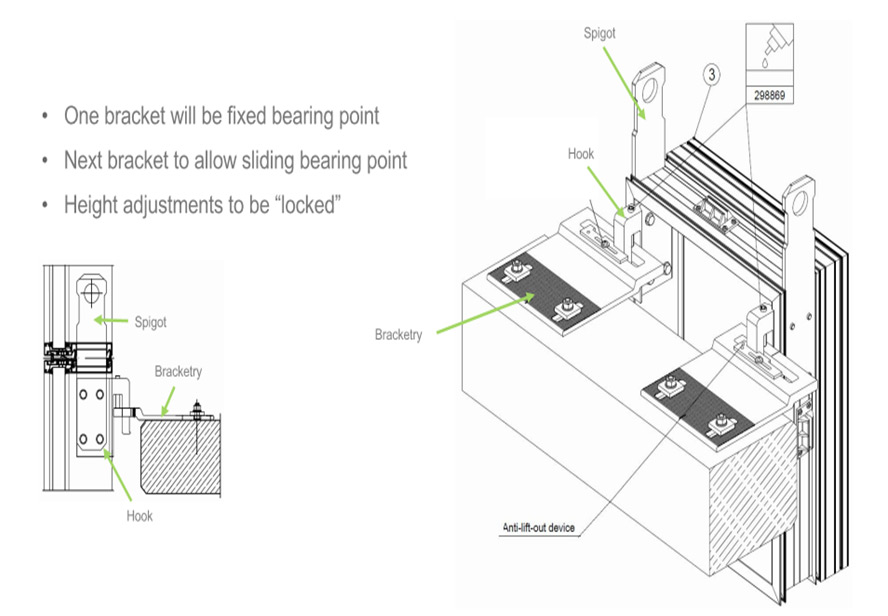

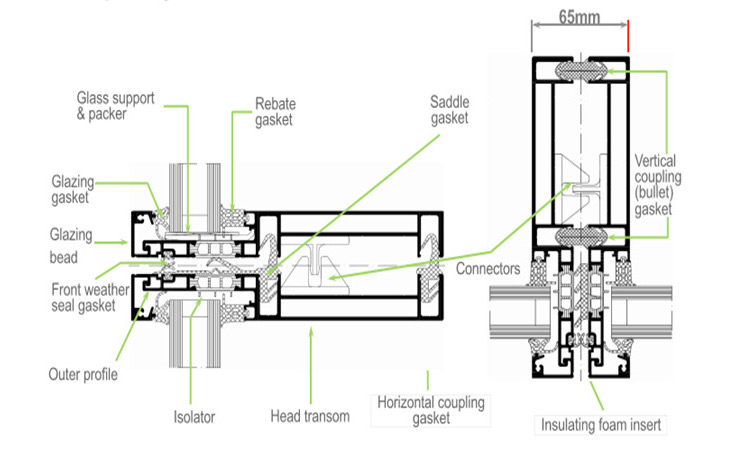

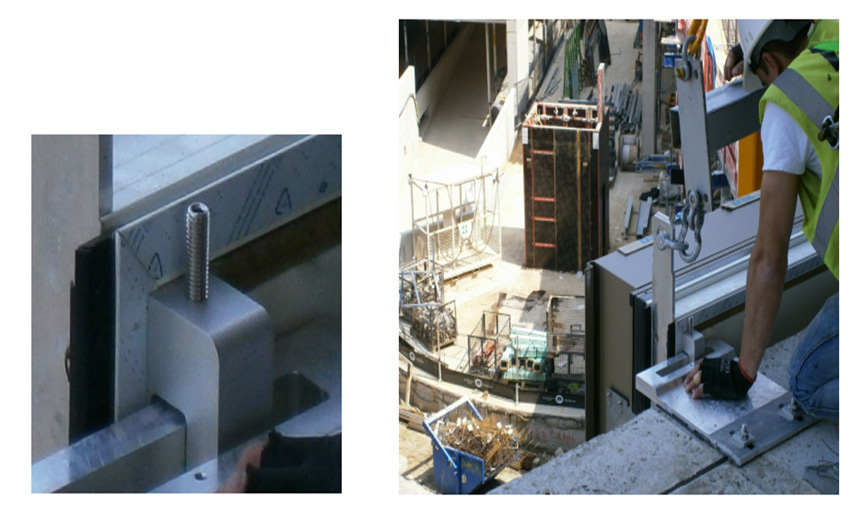

3. Cover Caped System

The factors

The factors that play an important role in glass facade design

  • Height of the building
  • Distance between slabs
  • Location of the building
  • Span of each pan

Factors affecting the price of the glazing

  • Curtain wall system
  • Glass
  • Location & Height of the building
  • Finish on the aluminium profiles
  • Accessories

Important factors for glazing

  • System Design – pressure eualized system
  • Barrier against water & air leakages – 3 barrier – Minimum
  • Thermally efficient system for better performance of the building, as no heat will be transmitted inside by the aluminum

List of Material

Cast in Chanel
Aluminium Bracket
Extruded Profile
Anchor Fastners
Silicon
Spacer Tape
Nut Bolts
Rockwool
GI/ALU
EPDM Gasket

Off Site / Factory Working

  • 1. Design and Drawing
  • 2. Material Selection and approval
  • 3. Glass performance test
  • 4. Material Procurement
  • 5. Fabrication of Alu. Frames
  • 6. Glazing and curing
  • 7. Packaging and dispatch

ON Site Working

  • 1. Site Survey
  • 2. Fixing Of Cast In Channel
  • 3. Brakect Fixing Alginment
  • 4. Fixing Of Subframes
  • 5. Installation Of Panles
  • 6. Fixing Of Smoke Seal
  • 7. Fixing Of Flashing
  • 8. Cleaning And Handover
